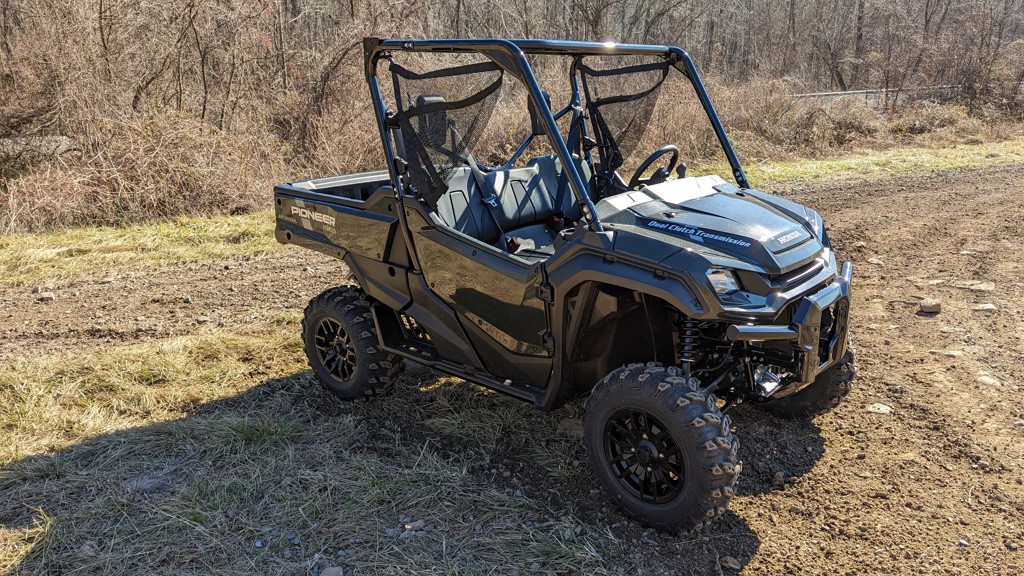

2024 Honda Pioneer 1000 Deluxe New

Engine Type: Parallel Twin
Displacement: 60.9 cu. in. (999 cc)
Bore and Stroke: Bore: 3.62 in. (92 mm); Stroke: 2.96 in. (75.2 mm)
Cooling: Liquid
Compression Ratio: 10:1
Fuel System: Gas
Front Suspension: Independent Double Wishbone
Front Brakes: Hydraulic Disc
Front Tire: Armstrong Dirt Master 2.0: 27 x 9-14
Rear Suspension: Independent Double Wishbone
Rear Brakes: Hydraulic Disc
Rear Tire: Armstrong Dirt Master 2.0: 27 x 11-14
Wheelbase: 80.2 in. (2037.1 mm)
Front Travel: 10.6 in. (268 mm)
Rear Travel: 10 in. (254 mm)
Ground Clearance: 13.6 in. (345.4 mm)
Fuel Capacity: 7.9 gal. (29.9 L)
Box Capacity: 1000 lbs. (226.8 kg.)
Towing Capacity: 2500 lb. (1134 kg.)
Drive System: Manual / Automatic Clutch
Speedometer: Standard
Tachometer: Standard
Odometer: Standard

Basic Information

Year: 2024
Make: Honda
Model: Pioneer 1000
Trim: Deluxe
Stock Number: WH801605
VIN: 1HFVE04B7R4801605
Condition: New
Type: Utility
Primary Color: Black Forest Green

Specifications

Bash Plate (Front)
Bash Plate (Rear)
Bed Capacity (kgs.): 226.8
Bed Capacity (lbs.): 1000
Body Material: Plastic
Cargo Bed Material: Polyethylene
Cargo Bed Tilt
Front Tire Diameter (in): 27
Front Tire Width: 9
Ground Clearance (in): 13.6
Ground Clearance (mm): 345.4
Height (Inches): 76
Height (mm): 1953.3
Length (Inches): 117
Length (mm): 2974.3
Payload Capacity (kgs): 453.6
Rear Hitch
Rear Tire Diameter (in): 27
Rear Tire Width: 11
Towing Capacity (kgs): 1134
Towing Capacity (lbs): 2500
Turning Radius (ft): 13.8
Wet Weight (kg): 724.9
Wet Weight (lbs): 1598
Wheelbase (in): 80.2
Wheelbase (mm): 2037.1
Wheels Composition: Aluminum
Width (Inches): 63
Width (mm): 1600.2

Engine

Bore (in): 3.62
Bore (mm): 92
Carburetion Type: Fuel Injected
Compression Ratio: 10:1
Cylinders: 2
Displacement (ci): 60.9
Engine Cooling: Liquid
Engine Size (cc): 999
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 7.9
Fuel Capacity Reserve (gal): 1.7
Fuel Capacity Reserve (l): 6.4
Fuel Injector
Fuel Injector Size (mm): 44
Fuel Requirements: Regular
Starter Type: Electric
Stroke (in): 2.96
Stroke (mm): 75.2
Valve Configuration: SOHC
Valves: 8
Valves Per Cylinder: 4

Drivetrain

Transmission Type: Manual / Automatic Clutch
Engine Braking System
Differential Lock
Differential Lock Location: Front / Rear
Driveline Type: Selectable 4X2 / 4X4
Number Of Driveline Modes: 4
Hi / Low Range
Number Of Speeds: 6
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse

Chassis / Suspension

Frame: Steel
Front Adjustable Fork Pre-Load
Front Travel (in): 10.6
Front Travel (mm): 268
Number Rear Shock Absorbers: 2
Rear Adjustable Shock / Spring Pre-Load
Rear Stabilizer Bar
Rear Suspension Material: Steel
Rear Travel (in): 10
Rear Travel (mm): 254
Steering Control: Steering Wheel
Steering Type: Power
Suspension - Front: Independent Double Wishbone
Suspension - Rear: Independent Double Wishbone

Comfort

Digital Instrumentation
Hour Meter
Seat Material: Vinyl
Seat Type: Bucket

Safety

Brakes - Front: Hydraulic Disc
Brakes - Rear: Hydraulic Disc
Front Brake Diameter (in): 8.3
Front Brake Diameter (mm): 210
Rear Brake Diameter (in): 8.3
Rear Brake Diameter (mm): 210
Seat Belts
Headlight(s)

Other Information

Cab / Bed Divider
Cab Cage
Cab Doors
Cab Doors Material: Hard
Cab Rollbar
Front Fender Flairs
Power Outlet
CV Boot Cover
Radiator Guard
